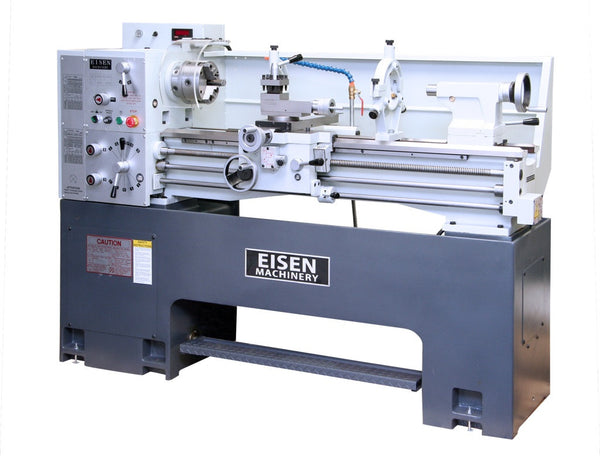

Made in Taiwan with One-Piece Cast Iron Base
Inverter driven lathe can be used on 3-phase or 1-phase electricity
EVS: Electronic Variable Speed
• Two step electronic variable speed 36 ~ 2500 RPM.
• Low maintenance. Less noise and downtime due to
fewer gears in headstock.
• Accepts both 3-phase and single-phase power.
Rigid Machine Structure
• Single-piece high tensile strength cast iron base.
• Hardened & ground bed ways.
• Hardened & ground gears in headstock.
Putting Safety First
• Feed rod is equipped
with over load safety clutch.
• Foot-operated brake
for rapid spindle stopping.
• Starting lever is
equipped with safety device.
• Apron is equipped
with an interlock to prevent feeding inter-gearing during automatic
feeding and half-nut operation.
• An overload safety
device is equipped to shut off feeding automatically when longitudinal
or cross feeding is overload or obstructed.
1440EV Specifications
|
Swing over Bed
|
14”
|
|
Swing over Cross Slide
|
8 3/4”
|
|
Swing over Gap
|
20 3/4”
|
|
Distance between Centers
|
40”
|
|
Width of Bed
|
9”
|
|
Spindle Nose
|
D1-4
|
|
Spindle Bore
|
1 9/16”
|
|
Taper of Spindle
|
M.T.#5
|
|
Spindle Speed (2-steps))
|
25 ~ 2500 RPM
|
|
Leadscrew Diameter
|
15/16”
|
|
Pitch
|
4 TPI
|
|
Inch Threads
|
3 ~ 56 TPI (32 kinds)
|
|
Metric Threads
|
0.4 ~ 7.0mm (32 kinds)
|
|
Longitudinal Feed Range
|
0.0026”/rev ~ 0.0368”/rev
|
|
Cross Feed Range
|
0.0013”/rev ~ 0.0184”/rev
|
|
Cross Slide Travel
|
7 7/8”
|
|
Compound Rest Travel
|
3 3/4”
|
|
Quill Diameter
|
1 9/16”
|
|
Tailstock Quill Taper
|
M.T. #3
|
|
Quill Travel
|
4 7/8”
|
|
Main Motor
|
5 HP, Three-phase, 220V
|
| Inverter Drive |
Yaskawa V1000, 7.5HP |
|
Coolant Pump
|
1/8 HP 3ph
|
|
Net / Gross Weight Approx
|
2,350 lbs / 2,650 lbs
|
|
Packing Measurement Approx.
(LxWxH )
|
73”x32”x63”
|
Included Accessories
- Digital Readout (2-axis DRO, CARMAR or Griffin brand)
- 3-Jaw
Scroll Chuck 6" (150mm)
- 4-Jaw Independent Chuck 8" (200mm)
- Face plate
- Foot
Brake
- 4-Way
Tool Post
- Dual
Dial
- Face
Plate
- Steady
Rest
- Follow
Rest
- Rear
Splash Guard
- One-Piece
Cast Iron Base
- Thread
Dial
- Gap
Bed
- MT3
Centers
- MT5
Center Sleeve
- Set
of Change Gears
OPTIONAL ACCESSORIES
- Work
Lamp
- Bed
Micro Stop
- Micro Carriage Stop
- 5C Collet Closer
- Quick
Change Tool Post (Aloris-style)
- Taper
Turning Attachment
- Drill
Chuck 13mm (1/2") w/ Arbor
- MT3
Live Centers
Freight Shipping
We will compare shipping rates among flatbed trucking, UPS Freight, DHE,
ESTES, RoadRunner and others to find you the best rate.
For freight shipping quotes, please let
us know 1) your destination zip code and 2) whether you have a forklift to
unload machine tools.
If you have any questions regarding
this item, please let us know we'll be happy to help.
|
