Accessories Catalog for Toolroom Lathes
Now available, PDF catalog for toolroom lathe accessories and optional equipments.
Digital Threading for Toolroom Chucker
NEW for 2007
CHR-68DT Toolroom Chucking Machine Adds Digital Threading
We have applied the Digital Threading technology from 618DT toolroom lathe to CHR-68 chucker.
The chucker is part of our toolroom lathe lineup. It comes with a 8-station indexing tool turret for quickly changing tools on complicated job setups. It also has 8-position carriage stop that can be setup to simplify multiple repetitive tool feeds.
Previously for threading operations chucker lathe relied on a separate threading attachment that was bulky and cumbersome. Now with CHR-68DT's Digital Threading capability, threading operations are microprocessor controlled and carried out by synchronized spindle speed and servo motor feed. All the operator needs to do is punch in desired thread pitch and thread direction then start the spindle rotation and carriage feed as normal using start/stop levers at the headstock. No gears to change. Less moving parts, easier maintenance.
Gang Tooling Now Available on CT-1118CNC Toolroom Lathe
There is now one more way to place cutting tools on the CT-1118CNC CNC Toolroom Lathe. Gang tooling makes it easier to setup jobs where multiple tool changes are necessary. It's suitable for higher volume production of the kind of high precision parts toolroom lathes are known for.
NEW: CT-1118CNC with gang tool plate. Cutting tools are secured into tool blocks which are bolted down to the T-slide on the tool plate.
CT-1118CNC with compound slide tool post (guard cover removed for visibility)
Let Us Help You Find Replacement Parts for Your Old Machine Tools
We can supply hard to find parts for toolroom lathes, engine lathes, milling, grinders, drills, bandsaws. Whether it's mechanical or eletrical parts, as long as the machine was originally made in Taiwan, we can definitely help you locate the parts you need.
In the past, we have helped customers locate parts for these machines:
- Victor-Taichung -- engine lathes, toolroom lathes
- FEELER -- toolroom lathes, such as FTL-618E, FTL-618EM. 2nd operation machines FTS-27, FTL-27, finishing lathes FP-27, chucking machine FHR-68
- CYCLEMATIC -- toolroom lathes
- Goodway conventional lathes
- NATIONAL lathes -- Usually big swing, oil field-type lathes
- Microweily -- engine lathes
- TAKANG -- 1740K lathe series, MS1740 lathe series
- ECOCA -- engine lathes, CNC lathes
- CNC Takang -- CNC turning centers
- Cadillac -- manual engine lathes
- Yang -- engine lathes, CNC lathes. We carry parts for various Yang lathes such as 1628 / 1640, 1933 / 1960, and 2233 / 2260 / 22100 series.
- Turn Master -- engine lathes
- Yeong Chin Machinery MaxMill YC-I 1/2V
- Rong Fu -- bandsaws, drilling and tapping machines.
We also have contacts in Japan to supply you with Japanese machine tool parts.
Some of the parts we have located for customers in the past include:
- Ohtsuka oil skimmer
- SMC filter media

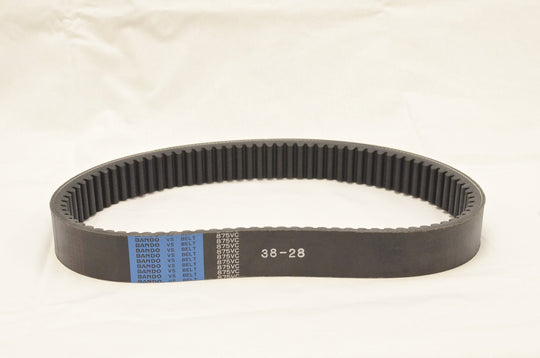

- Belts for older model Moriseiki CNC
- Hydraulic cylinder for Moriseiki
- Patlite signal lights for CNC machines
- parts for Koyo CNC grinder....
We can also supply commonly found electical parts on machine tools, such as

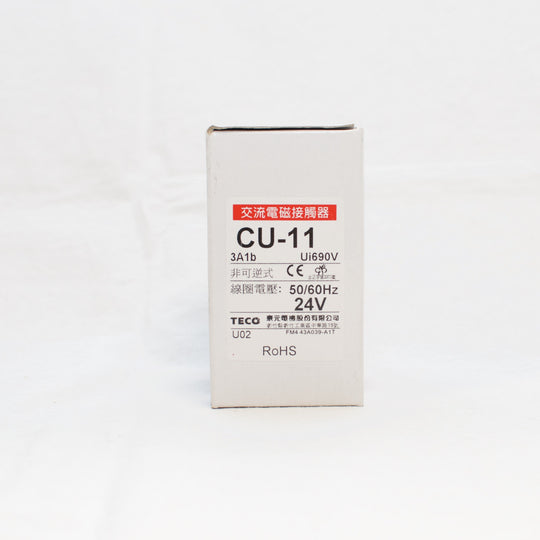

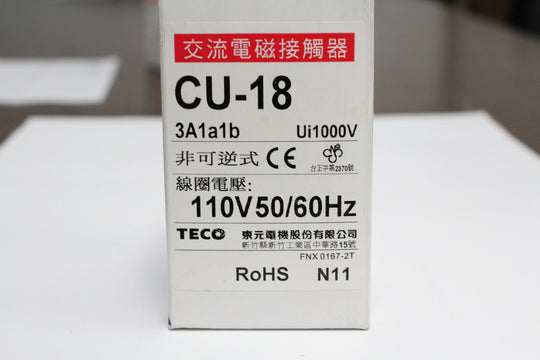

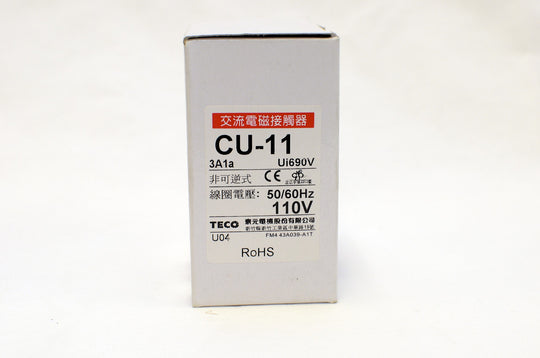

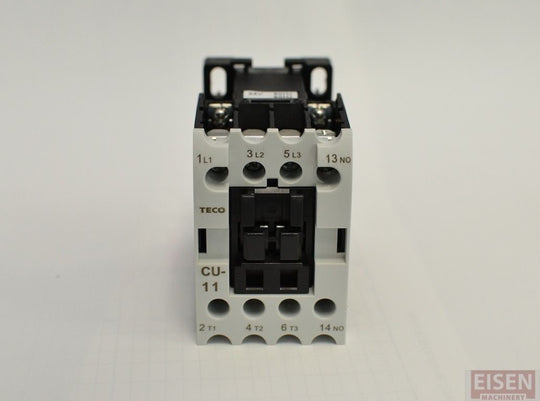

- Magnetic contactors (Taian, TECO, SIEMENS, Shi Lin)
- Thermal overload relays (TAIAN, TECO, SIEMENS, Shi Lin)
- Coolant pumps
- Auto lubrication tanks

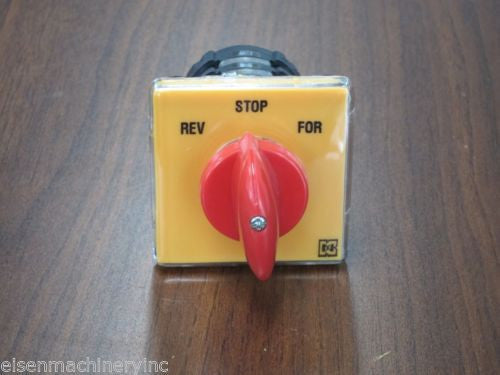

- Switches, fuses
Mechanical parts:
- Brake bands for lathes
- Gears for lathe headstocks or carriages for Taiwanese machines
- Spindle bearings (NSK, SKF, FAG)
- Ball screw support bearings and other bearings

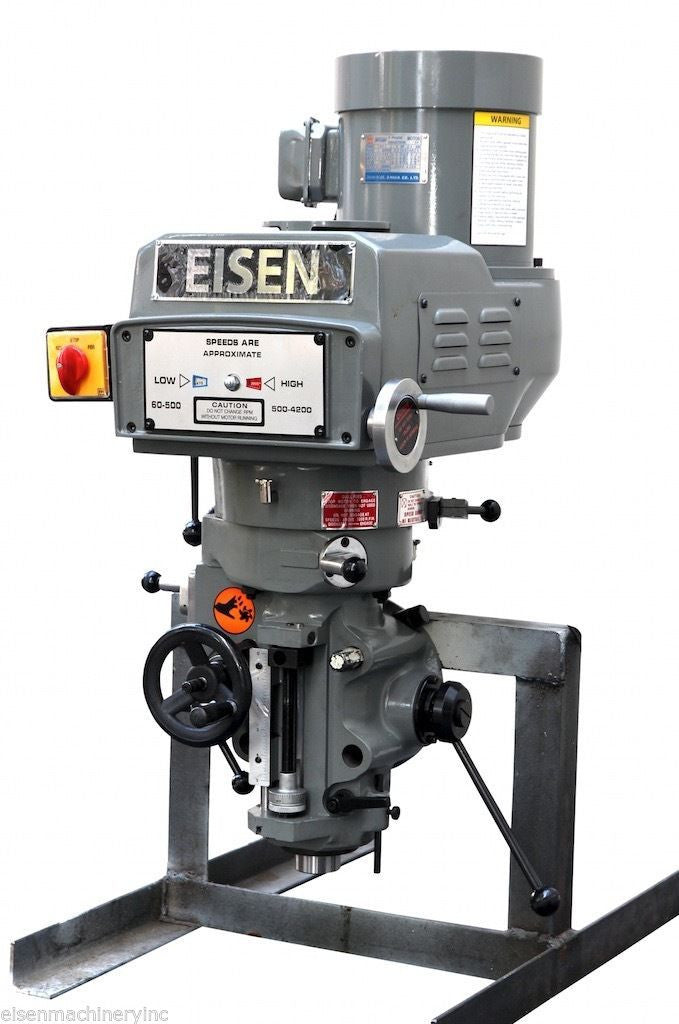

Announcing: Mill Head Replacement Service
For the many, many Bridgeport and Bridgeport-type milling machine owners in the United States, what do you do when the milling head is totally shot and needs a bunch of replacement parts to repair?
One economical solution might be to just buy a new milling head from us. As a special service, we provide the same milling machine head as on our S-series mills to customers looking to save on repair costs. Do the math. Sometimes replacing the whole thing can save you both time and money. Best of all, it's guaranteed to work. You don't have to deal with the uncertainty of repairs.
Our milling machine head can be directly bolted on to milling machines that use Bridgeport's J-head and most other import milling machines. We can provide the instructions on how to install the new head. A crane or forklift is highly recommended as these heads are not light. Other than that, the job can be done in less than half an hour with a couple of regular handtools.
Please take a look at specifications on our milling heads
A mill head to replace J head with step pulley is $1,895 each.
Please call us toll free 1-877-626-7285 if you are interested.
What is Digital Threading Control?
CTL-618DT toolroom lathe with Digital Threading Control replaces traditional threading gearbox with microprocessor-controlled, servo-driven leadscrew. In the past, when a machinst is faced with a workpiece that calls for thread pitch not supported on a conventional lathe, he has to locate and order a custom gear set and take the time to swap out the gears in the gearbox. This is not economically justifiable unless the volume is large enough. CTL-618DT toolroom lathe's design eliminates this time-consuming workaround. With the new digital threading system, the user's wishes with it comes to threading can be easily and immediately realized.
Simply type in the desired thread pitch on the numeric keypad on the touch screen LCD control panel and then start the threading cycle as on other conventional lathes. CTL-618DT's system would control and synchronize main spindle rotation and Z-axis feed rate to produce precise threading cycle for the given TPI or mm thread pitch.
Besides being able to cut thread pitches not previously available on manual lathes, noise and vibration during threading are also significantly reduced, because there are actually no more gears in the gearbox.
Since 618DT already has custom IC and a LCD panel to enable threading control, the next logical step is to integrate DRO functions into it for an all-in-one versatile machine. And 618DT has in-fact done that. DRO capabilities are built-in and come standard with no extra charge. 618DT features linear scales on X and Z-axis from Mitutoyo.
For people experienced with the super high precision and immediacy of EISEN's toolroom lathes, the 618DT adds another dimension of capabilities. It builds on the same foundation as 618EVS toolroom lathe. They are all ideal for super high precision lathe work on small parts (usually those that fit in 5C collets). The guaranteed circular accuracy is 50 millionth of an inch.
In addition to 618DT toolroom lathe with Digital Threading Control, Eisen Machinery also offers an entire range of conventional and CNC toolroom lathes and their parts and accessories. Please call us with your needs toll free 1-877-626-7285.
Oil Country Lathe to Tackle Toughest Jobs
Our heavy duty precision "big bore" lathes are ideal for large-scale turning, facing, taper cutting and threading applications that demand extremely powerful cutting capability and maximum rigidity. Industries such as pipeline, machine parts, mining, steel refi ning, power plant, paper making, ship building, textile and others count on our lathes’ massive construction with available 4-way track and up to 24” spindle bore to ensure maximum stability while performing heavy cutting operations.
EISEN oil country lathes are fitted with VFD motors up to 100 HP and harnessed through 4 speed gear change to optimize torque output. Smooth and efficient operation is the hallmark of our design and engineering effort. All the power is accompanied by labor-saving 6-way auto feeds and optional hydraulic power tailstock for maximum ease of operation. Pneumatic-powered automatic threading cycle is also available.
EISEN oil country lathes can be made especially to fit customer's size requirements -- from 6" to 24" spindle bore, from 35" to 105" swing size, from 59" to 472" between centers, and from 30 to 100HP motor. Meticulously built by our OEM factory in Taiwan, these heavy-duty lathes undergo thorough inspection before shipment and arrive at customer premises to be professionally installed to ensure a precise fit and high performance turning year after year.
Tool Room Lathes
Made by NUMBER ONE tool room lathe manufacturer in Taiwan. Our customers keep coming back to these lathes for ultra high precision work (spindle runout within 50 millionths of an inch), because we can provide our customers with the best price and service they need. We carry a large selection of manual toolroom lathes such as the CTS-27EVS 2nd Operation lathe, CHR-68EVS Chucking Machine, CP-27EVS Finishing Lathe, and 618EVS Toolroom Lathe all of which offers high speed and high accuracy cutting.
Some customers have the same ultra high precision requirements, but want the toolroom lathe to be fully automated, we offer them CT-1118CNC CNC toolroom lathes. It's built on the same high performance foundation of our manual toolroom lathes and comes with industry-standard FANUC controller.
For more information regarding these toolroom lathes, please call us at 1-877-626-7285.
Maximize production runs with HS-216+APC
HS-216+APC is designed with high productivity in mind. This fast and agile CNC machining center is ideal for high speed milling, drilling and tapping in demanding production environment. With innovative features such as the Automatic Pallet Changer (APC) and advanced tool change design it enables high throughput of NONSTOP MACHINING.
Want to learn more about this machine? Check out the specifications online or call us toll free 1-877-626-7285 for more information.
1640G (Victor Taichung Lathe)
This is the 16"×40" engine lathe (1640G) manufactured by "Victor Taichung" factory in Taiwan.
1640G is a reliable workhorse that has served the metalworking industry for over 25 years. Thousands of old Victor 1640 and 1660 lathes are still in production use everday. We have several 1640G and 1660G in stock. Call us for the best prices, toll-free 877-626-7285.
If you are an existing owner, remember we also carry the complete range of parts for this series.
